Galvanized V Mesh Security Fence with Customized Color and 1530x2500mm Panel Size for Garden Landscape Fencing

  • Galvanized V Mesh Security Fence with Customized Color and 1530x2500mm Panel Size for Garden Landscape Fencing
  • Galvanized V Mesh Security Fence with Customized Color and 1530x2500mm Panel Size for Garden Landscape Fencing
  • Galvanized V Mesh Security Fence with Customized Color and 1530x2500mm Panel Size for Garden Landscape Fencing
  • Galvanized V Mesh Security Fence with Customized Color and 1530x2500mm Panel Size for Garden Landscape Fencing
Plaats van herkomst Hebei, China
Merknaam LaiDi
Certificering ISO9001:2016
Modelnummer V01
Min. bestelaantal 50 sets
Prijs US$4-US$50
Verpakking Details ijzeren stalen pallet
Levertijd 15-20 dagen
Betalingscondities T/T,L/C
Levering vermogen 200 sets per dag
Productdetails
Productnaam V Mesh-veiligheidshek Materiaal Laag koolstofstaal
Plaats van herkomst Hebei, China Gebruik Metalen omheining
dienst video van installatie Frame-afwerking Gegalvaniseerd
Kleur Aangepast Pakket Pallet
Post-vorm Perzik bericht Functie Hoge kwaliteit
Certificaat ISO9001 Paneelgrootte 1530x2500 mm
Laat een bericht achter
Productomschrijving

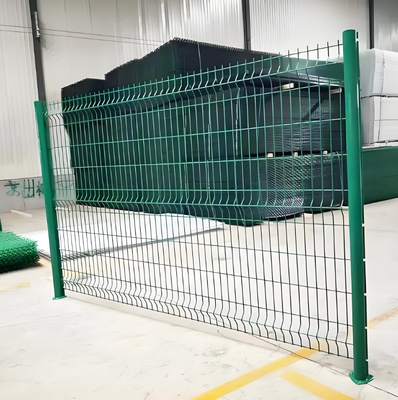

V Shaped 3D Curved Welded Wire Mesh Security Fence
Professional V-shaped 3D curved welded wire mesh security fence designed for garden landscape fencing applications. Combines security with aesthetic appeal.
Product Specifications
Product Name 3D Wire Mesh Fence
Material Metal Steel
Place of Origin Hebei, China
Frame Finishing Galvanized
Color Customized
Post Shape Round Post
Certificate ISO9001
Panel Size 1530×2500mm
Technical Details
  • Panel Heights: 1030mm to 2500mm
  • Standard Width: 3000mm
  • Wire Diameter: 4mm to 5mm (welded at each intersection)
  • Vertical Barbs: 20mm-30mm at top
  • Mesh Patterns: 100×50mm or 150×70mm (customizable)
Standard Panel Configurations
Panel Height Panel Length Wire Diameter Mesh Size Folds
H=1.03m L=2.5m 4.8mm 200×50mm 2
H=1.23m L=2.5m 4.8mm 200×50mm 2
H=1.53m L=2.5m 4.8mm 200×50mm 3
H=1.73m L=2.5m 4.8mm 200×50mm 3
H=2.03m L=2.5m 4.8mm 200×50mm 4

Available Colors: RAL6005 Green, RAL7016 Gray, RAL9005 Black, RAL7030 Stone Gray

Key Features
  • High Strength Construction
  • Excellent Steel Properties
  • Attractive Aesthetic Design
  • Wide Field of Vision
  • Easy Installation
  • Simple Assembly
  • Sustainable & Eco-Friendly
  • Rodent Proof
  • Rot Proof
  • Waterproof
System Components
Fence Post

Each fence post includes protective cap (reduces installation time and labor costs) with plastic film packaging, delivered on metal pallet.

V Mesh fence post with protective cap showing construction details
Accessories

Complete sets of clips and screws packaged with plastic film and carton box.

Fence installation accessories including clips and screws
Applications
  • Perimeter security for villas, residential compounds and private courtyards
  • Safety enclosures for schools, playgrounds and sports fields
  • Industrial security fencing for factories, warehouses and logistics parks
  • Municipal projects including parks, road isolation, and scenic areas
  • Commercial applications in plazas, office parks and transport hubs
Product Advantages
  • Concrete-poured fence posts for cost efficiency
  • High strength with excellent overall stability
  • Color plastic coating/spraying provides superior corrosion resistance
  • Harmonious perimeter appearance with attractive outlook
Installation Methods

1. Plastic clamp with square post

2. Double clamp with square post

3. Plastic M clip with square post

4. Spider clip with square post

5. Peach post

6. Round clamp with round post

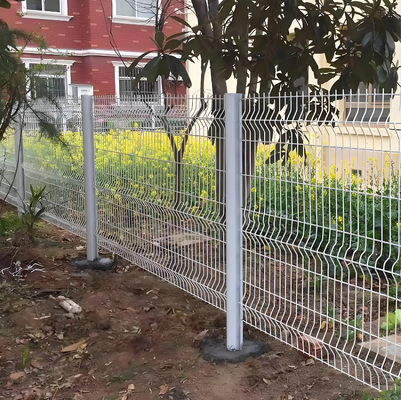

Installed V Mesh fence showing various connection methods and installation details
Packing & Delivery
  • Fence panel: Plastic film / wooden case + metal/wooden pallet
  • Fence post: Plastic bag + metal/wooden pallet (with rainhat installed)
  • Fence accessories: Plastic bag + carton box (clips & screws)

No special piping installation attachments required - uses propulsion device for easy grip and fast installation, reducing overall costs.

Packed fence components ready for shipping showing packaging method
Our Service
  • Free samples available upon request
  • Complimentary technical drawings provided
  • OEM and ODM orders accepted
  • Quality products at competitive factory prices
  • Quick response and reliable service
  • Extensive exporting experience to support market expansion
  • Quality guarantee with full compensation if requirements aren't met
Frequently Asked Questions
Can you provide a free sample first?
Yes. Please contact our sales team for details. Samples are available with applicable charges.
What is your delivery time?
Approximately 15 to 25 days after receiving your 30% deposit.
Are you a real factory?
Yes. We have manufactured and exported wire mesh products since 2013.
What are the payment terms?
Available by T/T or by Irrevocable L/C at sight.
How can I get a quotation?
Please contact us directly for detailed pricing information.
