Hot Dip Galvanized High Security Metal Anti-Climbing Fence

Plaats van herkomst Hebei, China
Merknaam LaiDi
Certificering ISO9001:2015
Modelnummer S02
Min. bestelaantal 50 sets
Prijs US$4-US$150
Verpakking Details ijzeren stalen pallet
Levertijd 15-20 dagen
Betalingscondities T/t, l/c
Levering vermogen 200 sets per dag

Neem contact met me op voor gratis monsters en coupons.

WhatsAppen:0086 18588475571

wechatten: 0086 18588475571

Skypen: sales10@aixton.com

Als u om het even welke zorg hebt, verstrekken wij de online-Help van 24 uur.

x
Productdetails
Productnaam anti-klimhek Gebruik beveiligingshek
Materiaal koolstofarme staal Oppervlaktebehandeling Bedekt met poeder
Kleur Zwart/groen Certificaat ISO9001
Plaats van herkomst Hebei, China Laadpoort Tianjin -haven
Draaddikte 3,5 mm Mesh Opening 12.7x76.2 mm
Postmaat 80x80 mm Dienst Video van installatie
Markeren

hot dip galvanized anti climb fence

,

high security metal fence

,

anti climbing security fence

U kunt de producten die u nodig heeft aanvinken en met ons communiceren op het mededelingenbord.
Laat een bericht achter
Productomschrijving
Hot Dip Galvanized High Security Metal Anti-Climbing Fence
Product Attributes
Attribute Value
Product Name Anti climb fence
Usage Security fence
Material Low carbon steel
Surface Treatment Powder coated
Color Dark green
Certificate ISO9001
Place of Origin Hebei, China
Loading Port Tianjin port
Wire Thickness 3.5mm
Mesh Opening 12.7x76.2mm
Post Size 60x60mm
Service Video of installation
Product Description

358 Anti Climb Security Fence 5ft PVC Coated Welded Fence Panel

Anti-Climb Fence & 358 High Security Fence

Anti-climb fence, also called High Security Fence, 358 Fence, which is well-known as anti-climb & anti-cut. Using high quality carbon steel wire to weld a fence panel, it can provide privacy to some extent. Giant High security fences are used to give enduring and secure protection for public buildings, commercial properties etc. High security fence can also be worked with electric alarm, detection systems etc. It is also widely used in military, airports, prisons etc.

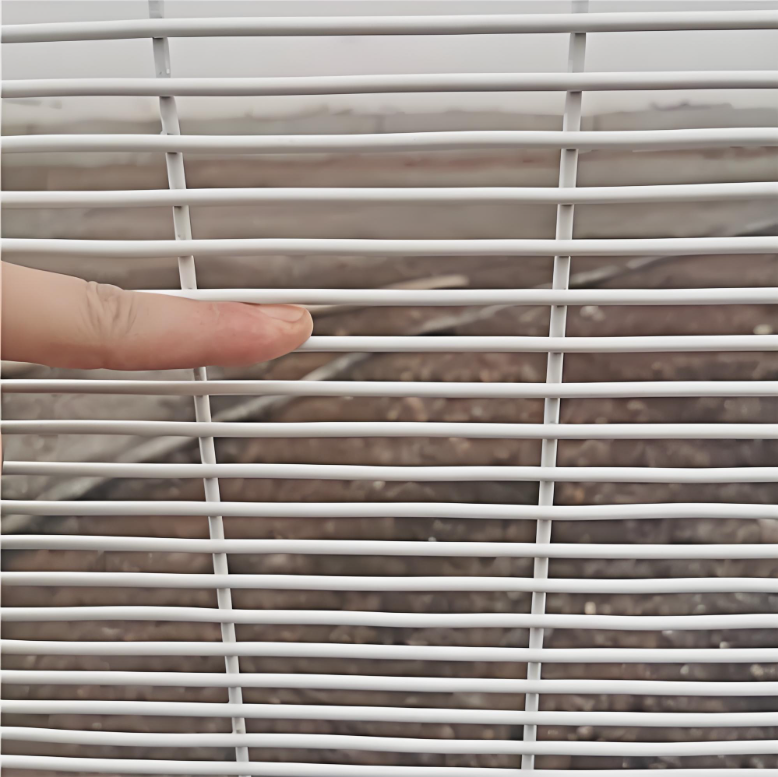

Anti climb fence is the ultimate heavy duty welded mesh panel providing the highest degree of security with excellent see through visibility. It has toe and finger proof profile. With spacing specification of 75mm x 12.5mm, it is impossible for fingers and toes to go through. Our anti-climb fence is perfect as a guarded fence system because of its exclusive thickness, anti-cutting materials and its framework is very strong resistant and hard to uninstall.

Specifications of the Panels

Wire thickness: 3.5mm, 4.0mm, 4.5mm, 5.0mm, etc

Mesh Opening: 12.7*76.2mm

Panel Size: 1.5*2m, 1.8*2.5m, 2*3m, etc

Post Size: 50*50mm, 60*60mm, 60*80mm, 80*80mm, etc

Post Thickness: 1.0mm, 1.2mm, 1.5mm, 1.8mm, 2.0mm, etc

Surface Treatment: Galvanized, Powder Coated

Line Wire Cross Wire Hole Size Length Height Bending No. Common Color Surface Treatment
4x3mm 4x4mm 4.5x3mm 4.5x4.5mm 76.2x12.7mm 75x12mm 2m 2.2m 2.4m 3m 1800mm 4 Green RAL 6005 Grey RAL 7016 Black RAL 9005 1. Hot-dipped galvanized after black wire welded
2. PVC coated after galvanized wire welded
3. PE coated after galvanized wire welded


2000mm
4



2200mm
4



2400mm
4



2800mm
5



3000mm
5

358 Fence With Square Type Post
Post View Size Thickness Panel Height Post Length Surface Treatment
Itype post 44x70mm 55x100mm 1.8mm 2mm 2.5mm 3mm 1830mm 2400mm 1. Black tube Hot-dipped galvanized
2. Galvanized tube PVC coated



2030mm 2500mm



2230mm 2800mm
Square post 50x50mm 60x60mm 80x80mm 100x100mm
2430mm 3000mm



2800mm 3500mm



3000mm 3700mm
Surface Treatment
  • Hot-Dipped Galvanized After Welding
  • Electric Galvanized Then PVC Coated
  • Electric Galvanized Then Powder Coated
Security Fence Details
Hot Dip Galvanized High Security Metal Anti-Climbing Fence  0 Hot Dip Galvanized High Security Metal Anti-Climbing Fence  1

Accessories: Clips and screws are packed by sets, plastic film + carton box. Carton Box Dimensions: 300*300*400mm

Hot Dip Galvanized High Security Metal Anti-Climbing Fence  2
Application

358 fence is designed as an anti-climbing and anti-cutting barrier with good weldability. It is therefore characterized by security and durability. It is very suitable for:

  • Electronic alarm and detection systems
  • Prisons
  • Military sites and airports
  • Industrial and commercial properties
  • Warehouses
  • Power plants
  • Offshore petrochemical facilities
  • Harbor perimeters
  • Laboratories
  • Secure hospitals
  • Schools and parks
  • Recreational and entertainment areas
Fence Packaging
  • Plastic film at the bottom to avoid the panel being destroyed
  • 4 metal corners to ensure the panel strong and uniform
  • Wood plate at the top of pallet to keep the under panel
  • Pallet tube size: 40*80mm tubes at the bottom vertical position
Hot Dip Galvanized High Security Metal Anti-Climbing Fence  3
Our Service
  • Free Sample can be offered
  • Free Drawings can be offered
  • OEM and ODM order are accepted
  • Good Quality + Factory Price + Quick Response + Reliable Service
  • Provide visualization services to view production progress anytime and anywhere
  • Rich exporting market experience offered to enlarge your market
  • Warranty: Best quality products to be manufactured. If the quality is not meet your demand, we are sure to give you full compensation in any way, money back or free reorder.
