Industry Hot Dipped Galvanized Welded Metal Stair Steps Steel Grating
Neem contact met me op voor gratis monsters en coupons.
WhatsAppen:0086 18588475571
wechatten: 0086 18588475571
Skypen: sales10@aixton.com
Als u om het even welke zorg hebt, verstrekken wij de online-Help van 24 uur.
xProductdetails
| Productnaam | Gelast rooster van staal | Materiaal | Zacht staal |
|---|---|---|---|
| Plaats van herkomst | Hebei, China | Oppervlaktebehandeling | heet gedompeld gegalvaniseerd |
| Kleur | splinter | Type | dwarsbar |
| Certificaat | ISO9001 | Sollicitatie | Kantoorgebouw |
| Rastermaas | 30x100mm | Staalgehalte | 3 mm |
| Lagerbar pitch | 40 mm | Techniek | Gelast |
| Markeren | hot dipped galvanized steel grating,welded metal stair steps,industrial steel grating steps |
||
U kunt de producten die u nodig heeft aanvinken en met ons communiceren op het mededelingenbord.
Productomschrijving

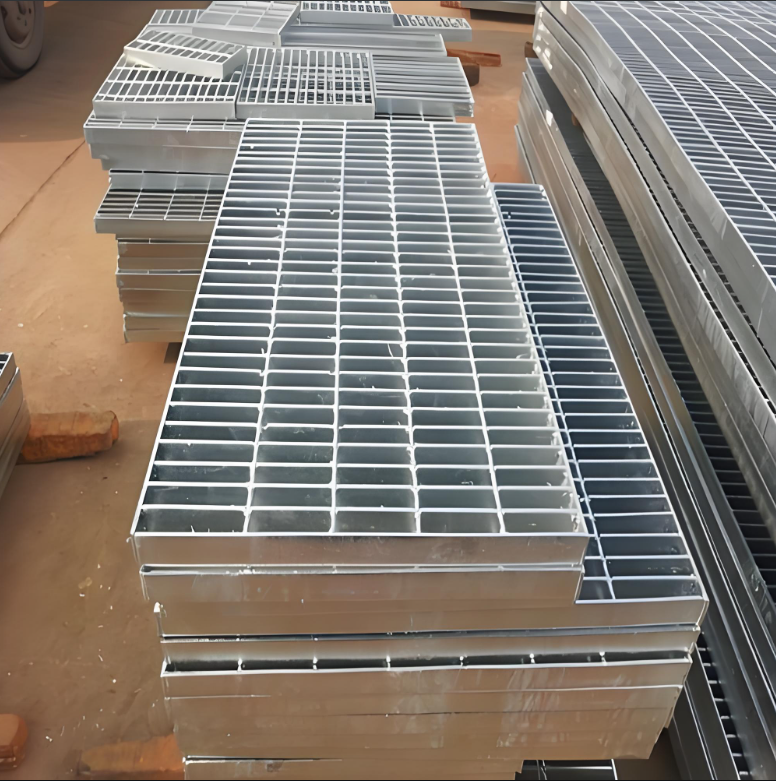

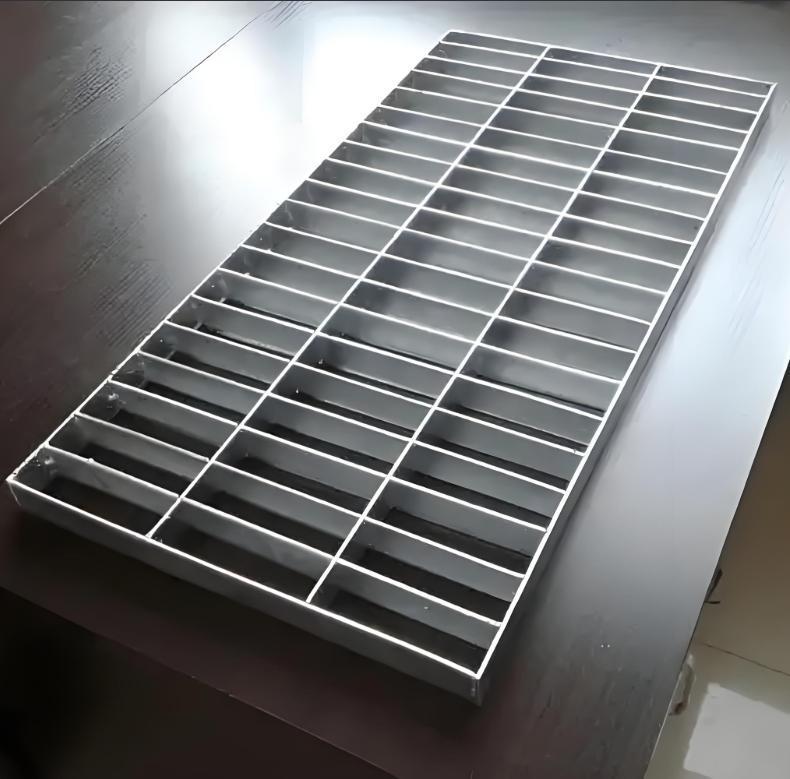

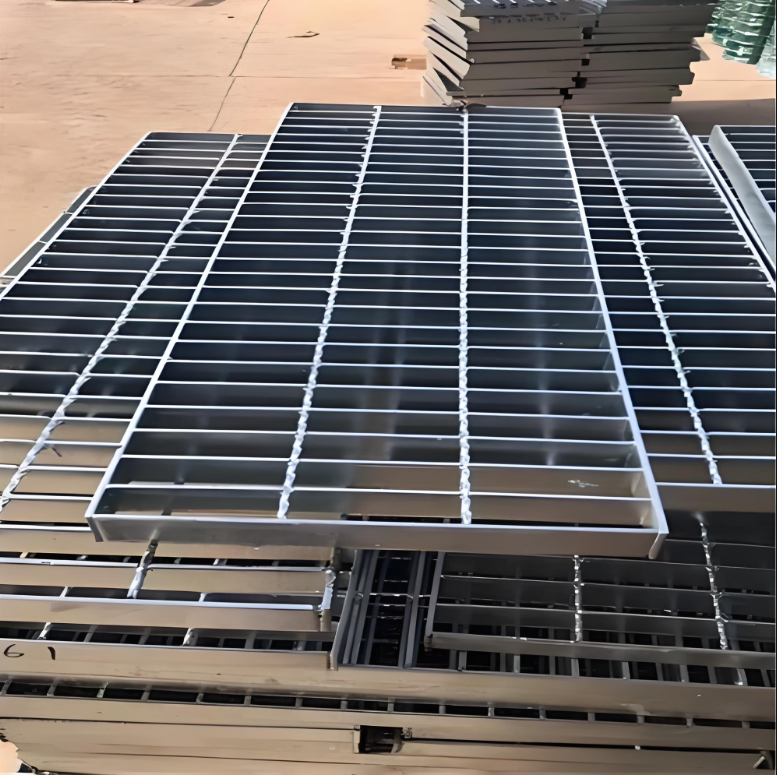

Industry Hot Dipped Galvanized Welded Metal Stair Steps Steel Grating
Hot Dipped Galvanized Welded Drainage Channel Steel Grating
Steel grating is typically made from steel bars or flat steel that are welded or locked together to form a grid pattern. The bars are usually arranged in a parallel or perpendicular manner, creating an open grid with gaps between them. These gaps allow for the passage of air, water, and light, while still providing a sturdy surface for walking or supporting heavy loads. There are different types of steel grating available, including welded steel grating, press-locked grating, riveted grating, and swage-locked grating. Each type offers unique characteristics and advantages depending on the specific application and requirements.
Galvanized Steel Grating Specification
| Item | Description |
|---|---|
| Bearing bar | 25x3, 25x4, 25x4.5, 25x5, 30x3, 30x4, 30x4.5, 30x5, 32x5, 40x5, 50x5, 65x5, 75x6, 75x10,100x10mm etc; I bar: 25x5x3, 30x5x3, 32x5x3, 40x5x3 etc US standard: 1'x3/16', 1 1/4'x3/16', 1 1/2'x3/16', 1'x1/4', 1 1/4'x1/4', 1 1/2'x1/4', 1'x1/8', 1 1/4'x1/8', 1 1/2'x1/8' etc. |
| Bearing bar pitch | 12.5, 15, 20, 23.85, 25, 30, 30.16, 30.3, 32.5, 34.3, 35, 38.1, 40, 41.25, 60, 80mm etc US standard: 19-w-4, 15-w-4, 11-w-4, 19-w-2, 15-w-2 etc. |
| Cross bar pitch | 38.1, 50, 60, 76, 80, 100, 101.6, 120mm, 2' & 4' etc |
| Material Grate | ASTM A36, A1011, A569, Q235, S275JR, SS304, Mild steel & Low carbon steel, etc |
| Surface treatment | Black, self colour, hot dip galvanized, painted, spray coating |
| Grating Type | Plain / Smooth, Serrated /teeth, I bar, serrated I bar |
| Standard | China: YB/T 4001.1-2007, USA: ANSI/NAAMM(MBG531-88), UK: BS4592-1987, Australia: AS1657-1985, Germany: DIN24537-1-2006, Japan :JIS |
| Application |
|
Steel Grating Type
Versatile and High Quality
Steel grating has been widely used in various industries worldwide. Primarily used as platform plates, ditch covers, stair treads, and building ceilings, our steel grating is manufactured through welding flat steel and bars at specific distances, followed by cutting, opening, and edging processes. The products feature high strength, light structure, excellent load-bearing capacity, and easy installation. The hot-dipped zinc coating provides superior anti-corrosion resistance.
Product Features
- Lightweight construction
- High strength and durability
- Excellent corrosion resistance
- Good ventilation and light transmission
- Attractive and long-lasting appearance
- Simple installation process
Production Process
Steel Grating Applications
- Stair stepping boards
- Ditch covers
- Steel ladders
- Tree pool covers
- Working platforms
- Catwalk steel grating
- Steel driveway grates grating
Packing & Delivery
- Bandage and Paperboard: Generally applies to neat steel plate
- Screw Locking Method: Uses 4 screw rods through the aperture of the steel grid for high strength
- Steel Pallet: Traditional export packing
FAQ
1. Are you factory/manufacturer or trader?
We are direct factory who owns production lines and workers. Everything is flexible and there is no need to worry about extra charges by the middle man or trader.
2. Which countries do you export to?
Our goods are mainly exported to Australia, Canada, UK, USA, Germany, Thailand, South Korea and so on.
3. Can I get free samples?
If the sample is available, yes, can be free. If unavailable, need to customize.
4. What is your minimum order quantity?
Actually there is no MOQ for our products. But usually we recommend a quantity based on the price which is easy to accept.
5. Which payment method you can accept?
Generally we adopt T/T, LC, Western Union, PayPal, Escrow and Money Gram.
