1*1.5M Powder Coated Temporary Barricade Events Crowd Control Barriers
Neem contact met me op voor gratis monsters en coupons.
WhatsAppen:0086 18588475571
wechatten: 0086 18588475571
Skypen: sales10@aixton.com
Als u om het even welke zorg hebt, verstrekken wij de online-Help van 24 uur.
xProductdetails
| Kader | Ronde pijp | Finsh | Hete dip gegalvaniseerd |
|---|---|---|---|
| Aantal kruisbalken | 2 | Verticale belasting | 5000N |
| Sollicitatie | evenement enz. voor druktebeheersing | kaderpijp | 32 mm |
| Pijpdikte | 1,5 mm | Paneelgrootte | 1.1*2,2 m |
| Voetstijl | Klauwvoeten | Oprecht | OD12MM,OD16MM,OD19MM,OD20MM,OD25MM |
| Garantie | 5 jaar | Buisdikte | 1,5 mm |
| Buisdiameter | 38 mm | Omheiningsgrootte | Voor de afmeting van de afmeting van de verpakking: |
| Framemateriaal | Metaal | ||
| Markeren | powder coated crowd control barrier,temporary barricade for events,1.5m crowd control barrier |
||
U kunt de producten die u nodig heeft aanvinken en met ons communiceren op het mededelingenbord.
Productomschrijving

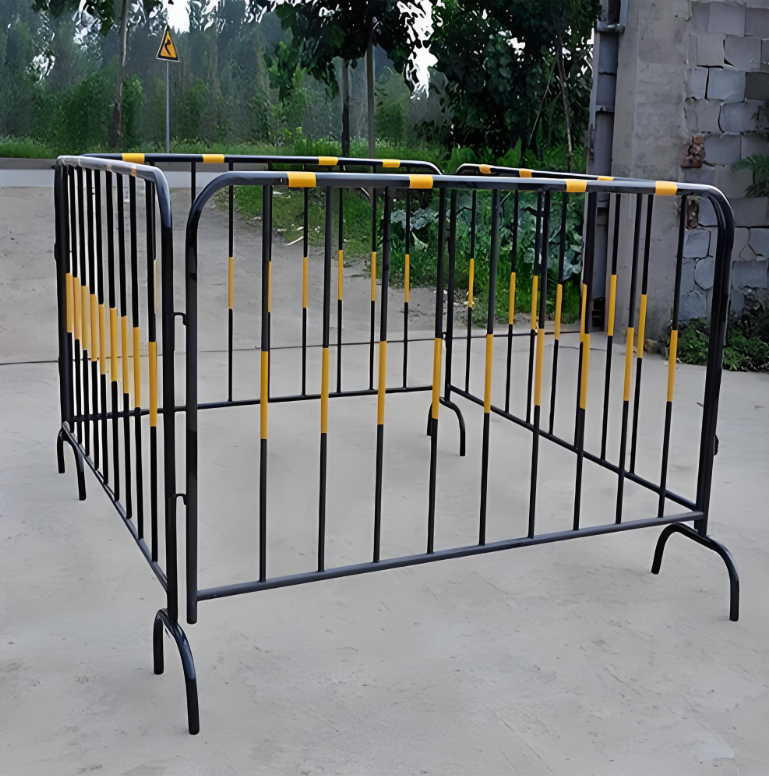

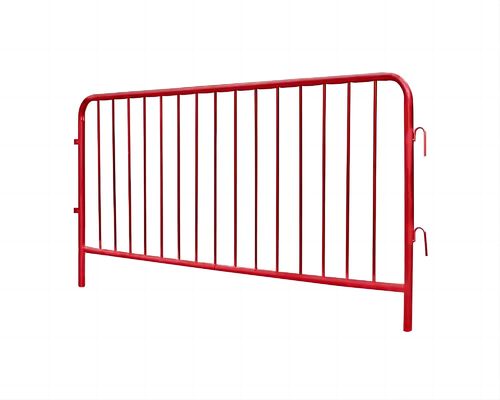

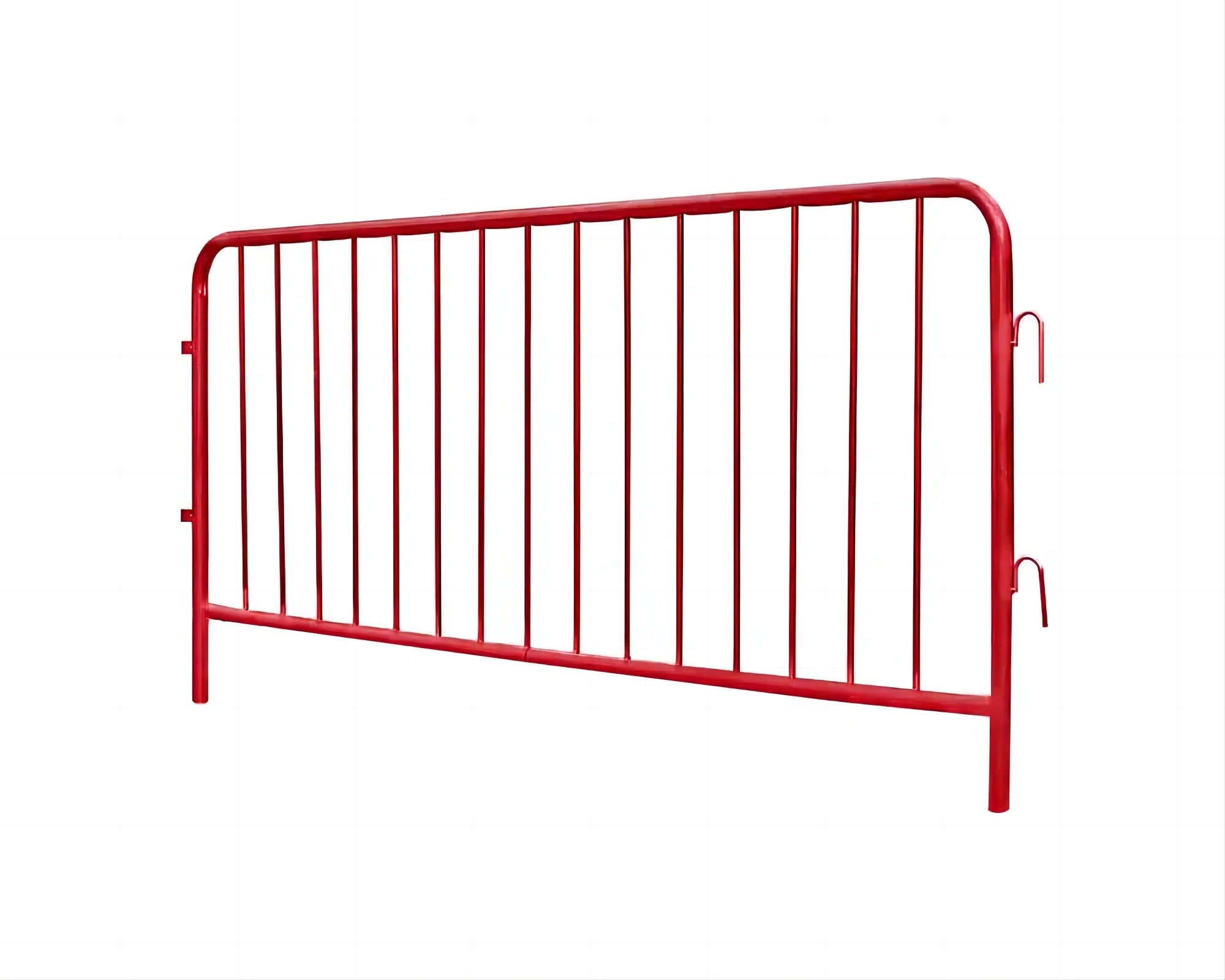

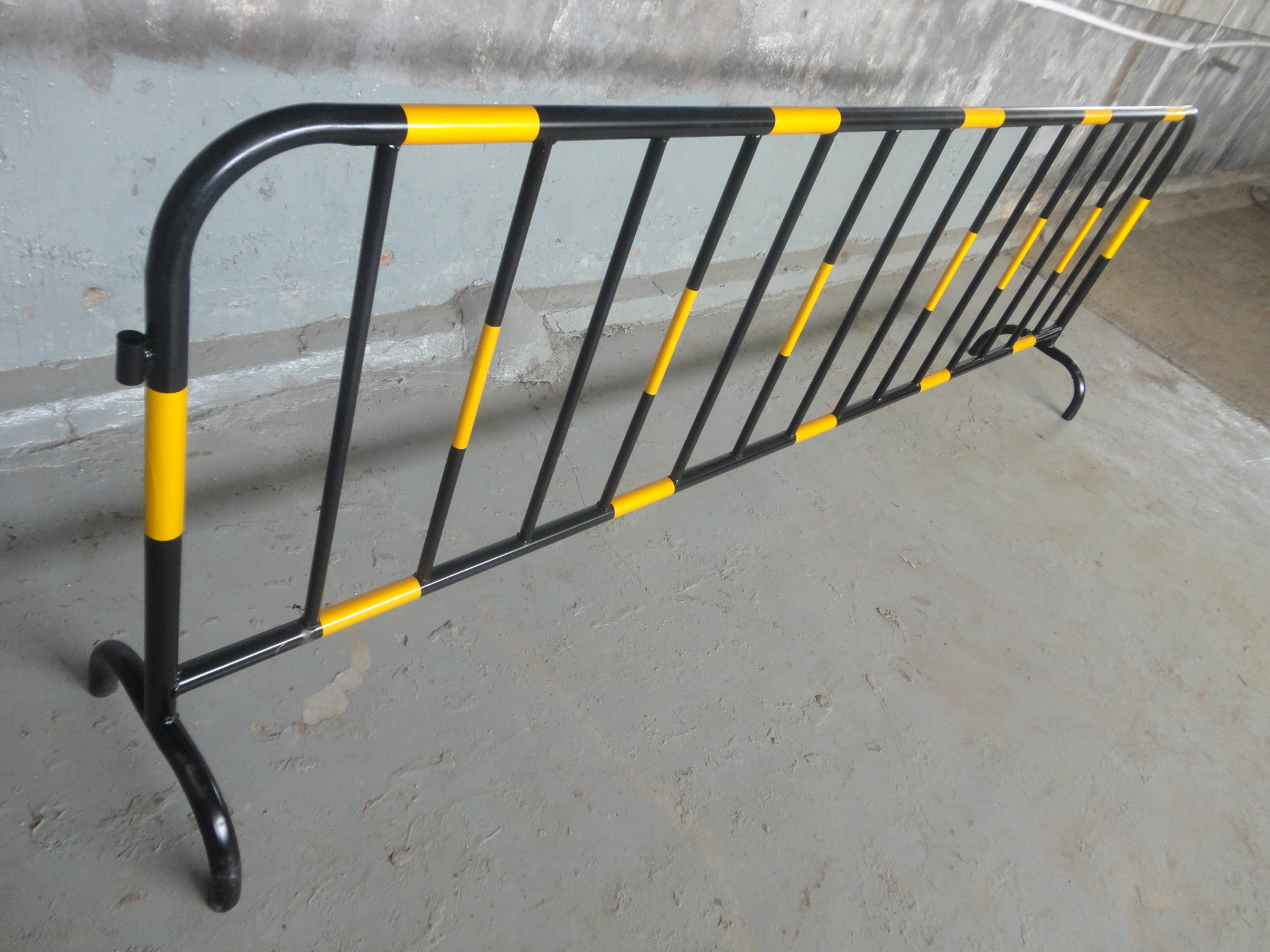

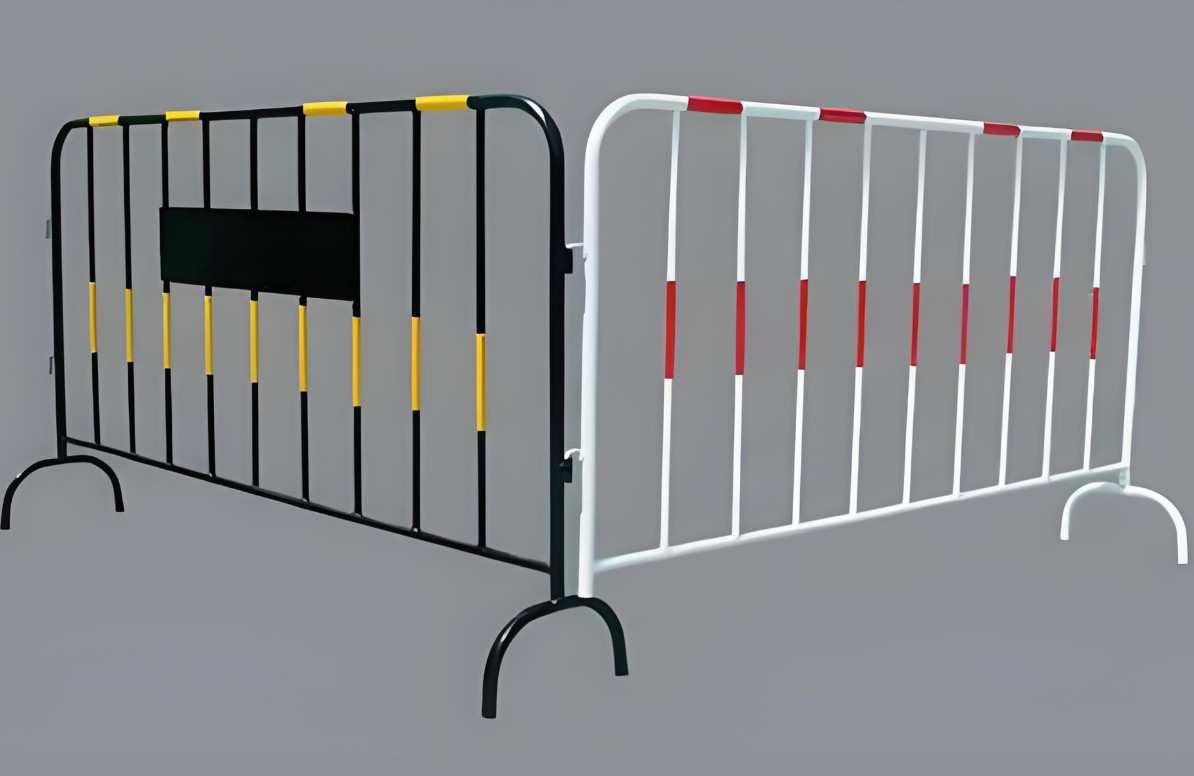

1*1.5M Powder Coated Temporary Barricade Events Crowd Control Barriers
Product Specifications
| Attribute | Value |
|---|---|
| Frame | Round Pipe |
| Finish | Hot dip galvanized |
| Number Of Crossbars | 2 |
| Vertical Load | 5000N |
| Application | Event etc for crowd control |
| Frame Pipe | 32mm |
| Pipe Thickness | 1.5mm |
| Panel Size | 1.1*2.2m |
| Feet Style | Claw Feet |
| Upright | OD12MM,OD16MM,OD19MM,OD20MM,OD25MM |
| Warranty | 5 years |
| Tube Thickness | 1.5mm |
| Tube Diameter | 38mm |
| Fence Size | 1100x2100mm |
| Frame Material | Metal |
Product Description
Roadway Safety Barricade (also referred to as crowd control barricades, with some versions called a french barrier or bike rack in the USA), are commonly used at many public events. security for special events, parades, festivals, concerts and sporting events.Roadway Safety Barricade is ideal where high quality, attractive and durable crowd control is required. Built to proven design standards,Crowd barricade is built from high-quality carbon steel and is hot-dipped galvanized inside and out to ensure long-term weather resistance.
Standard Specifications
- Panel Size (mm): 914x2400, 1090x2000, 1090x2010, 940x2500
- Frame Tube (mm): 20, 25, 32, 40, 42 OD
- Frame Tube Thickness (mm): 1.2, 1.5, 1.8, 2.0
- Vertical Tube (mm): 12, 14, 16, 20 OD
- Vertical Tube Thickness (mm): 1.0, 1.2, 1.5
- Tube Space (mm): 100, 120, 190, 200
- Surface Treatment: Hot dipped galvanized or Powder coated after welded
- Feet Options: Flat feet, Bridge feet and Tube feet
European Crowd Control Barrier Specifications
| Panel Length | Panel Height | Frame tube | Inner tube | Inner tube distance | Feet |
|---|---|---|---|---|---|
| 2m 2.2m 2.5m |
900mm 1000mm 1100mm 1200mm |
Φ38x1.5mm | Φ16x1.2mm Φ16x1.5mm Steel rod:φ12mm |
110mm 120mm 150mm |
Flat feet: 50x580x6 mm Bridge feet Length: 67.5x50cm V shape feet height:270mm Φ38x1.8mm Φ38x2mm Φ48x1.5mm Φ48x2mm |
Surface treatment: 1. Hot-dipped galvanized wire and tube welded 3. Hot-dipped galvanized after black wire and tube welded
Product Drawing
Available Feet Styles
Crowd control barrier -Welded Fixed Feet:
With fixed leg welded to the frame permanently.
Ideal for public event areas where the speed of installation, dismantling and high security are the main concerns.
Perfect for directing foot traffic.
Crowd control barrier -Flat Feet:
With removal and replaceable flat legs bolted on the panels
Easy storage, transportation and stacking together.
Much more stable and safer.
Flat leg design minimizes the trip hazard.
Crowd control barrier -Bridge Feet:
Bridge shaped legs
Removal and replaceable bases
The most stable type
Key Advantages
- Fully hot dipped galvanized after welding for maximum corrosion resistance
- Weather resistant and durable construction
- Lightweight yet strong enough for effective crowd control
- Removable feet design for easy transportation and storage
Main Features
- Steel pipe material for high strength and impact resistance
- Inserted uprights before welding for durable and firm structure
- 360° full hand welding for optimum strength
- Hot dipped galvanised or powder coated for outdoor durability
- Hook and loop interlocking system prevents barrier damage
- Flexible structure to form different passage configurations
Applications
- Temporary fencing for construction sites and private property
- Residential housing site security
- Crowd control for public events, sports, concerts and festivals
- Temporary safety fencing for swimming pools
Packaging & Delivery Options
We offer flexible packaging solutions to meet your requirements:
- Standard Packing - Bulk packaging saves space and reduces costs
- Customized packaging - Palletized for convenient loading/unloading
- Custom labels - Available upon request
Our factory features a large, clean and dry warehouse for short-term storage needs.
Why Choose Our Products
LAIDI Wire Mesh Company has established an excellent reputation in global markets. With our extensive experience and commitment to quality, we provide consistent, reliable fencing solutions. We value every opportunity to work with both existing and new clients, ensuring our products meet your specific requirements and local specifications.
Frequently Asked Questions
Q: Are you a factory or trading company?
A: We are a factory.
Q: What certificate do you have?
A: We have ISO and CE certificate.
Q: How does your factory do regarding quality control?
A: We have a special QC department in charge of products' quality.
Q: How long is the warranty period?
A: All of our products have one year warranty.
Q: What's the main market of your company?
A: We have customers all over the world.
Q: How much production capacity of your company one year?
A: This depends on your needs.
Q: Where is your factory located? How can we visit there?
A: Our factory is located in Anping county, Hengshui City, Hebei, China, near Shijiazhuang Airport and Beijing Airport. We offer transportation service.
Company Information
Anping LaiDi Wire Mesh Products Co.,Ltd. is a leading manufacturer of wire mesh products located in Anping County, the famous Wire Mesh Hometown in China. We are certified under ISO 9001 quality management, ISO 14001 environmental management, and GB/T 28001 occupational health and safety systems.
With over 20 years of experience, we export globally, specializing in:
- Wire mesh fence
- Metal fence
- Palisade fence
- Temporary fence
- Welded gabion
- Hexagonal wire netting
- Welded wire mesh
- Livestock yard products
Our mission is "Quality First, Customer First, Reputation Above All". All products undergo rigorous testing before shipment to ensure only qualified products reach our customers.
